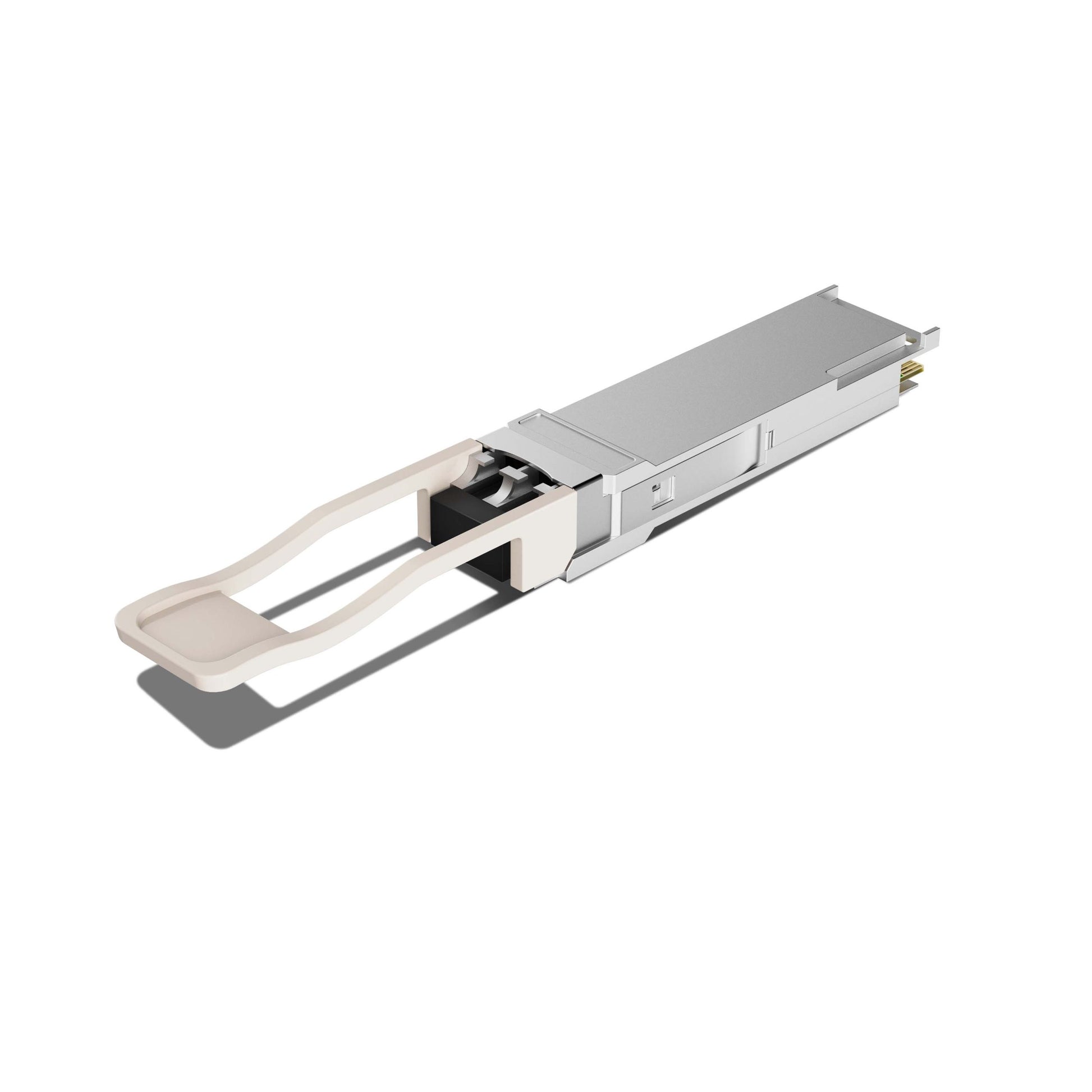

QSFP28 100G ZR4 80Km LC Transceiver

The QSFP28-100G-ZR4 optical transceiver integrates the transmit and receive path onto one module. On the transmit side, four lanes of serial data streams are retimed and passed on to four laser drivers, which control four electric-absorption modulated lasers (EML) with 1295, 1300, 1305, and 1309 nm center wavelengths. The optical signals are then multiplexed into a single-mode fiber through an industry-standard LC connector. On the receive side, four lanes of optical data streams passed on to a Semiconductor Optical Amplifier(SOA) and are optically demultiplexed by an integrated optical demultiplexer. Each data steam is recovered by a PIN photodetector and transimpedance amplifier, retimed and passed on to an output driver. This module features a hot-pluggable electrical interface, low power consumption, and 2-wire serial interface.

Features

• Duplex LC receptacle optical interface
• Single +3.3V power supply
• Hot-pluggable QSFP28 MSA form factor

• 4x25G Electrical Serial Interface
• Compliant with 4x28G(CEI-28G-VSR)

• Built in digital diagnostic function

• Transmitter: cooled 4x25Gb/s LAN WDM EML TOSA (1295.56, 1300.05, 1304.58, 1309.14nm)

• Receiver: 4x25Gb/s SOA+PIN ROSA

• Operating case temperature range: 0℃ to 70℃

• Up to 80km reach for G.652 SMF without FEC

• Power dissipation < 5.5 W
