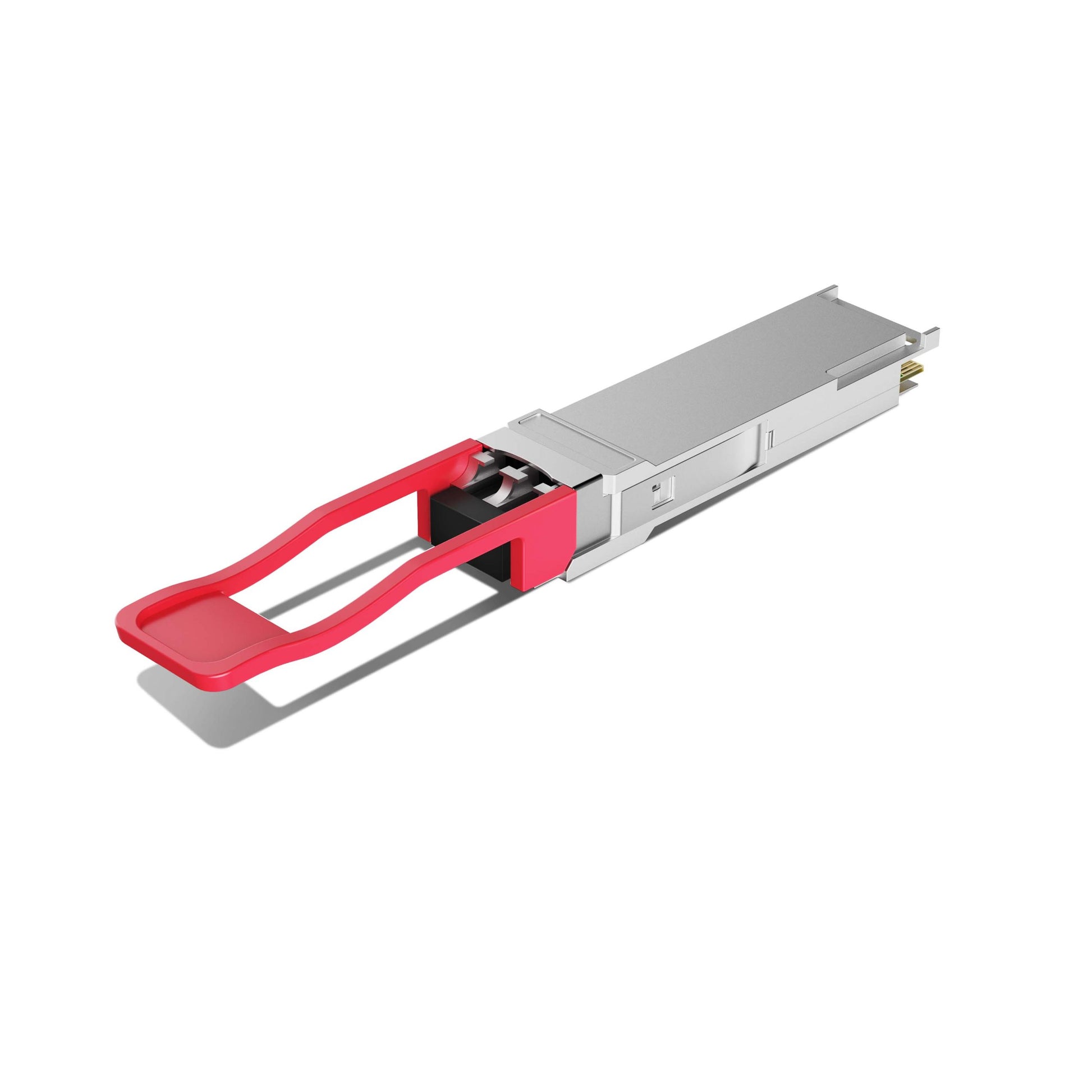

QSFP28 100G ER4 40km LC Transceiver

The QSFP28-100G-ER4 is designed for 40km optical communication applications. This module contains 4-lane EML optical transmitter, 4-lane optical receiver and module management block including 2 wire serial interfaces. The optical signals are multiplexed to a single-mode fiber through an industry standard LC connector.

Features

• Support line rates from 103.125 Gb/s
• Transmission data rate up to 25.78125Gbps per channel
• Up to 40km transmission on single mode fiber
• LAN WDM EML laser and APD
• Support Multi-Pin function with IntL/RxLOSL and LPMode/TxDIS
• High speed I/O electrical interface (CAUI-4)
• I2C interface with integrated Digital Diagnostic monitoring
• QSFP28 MSA package with duplex LC connector
• Single +3.3V power supply
• dissipation Commercial：< 5W
• Temperature Range:0°C ~+70°C (Commercial)
• Complies with EU Directive 2015/863/EU
