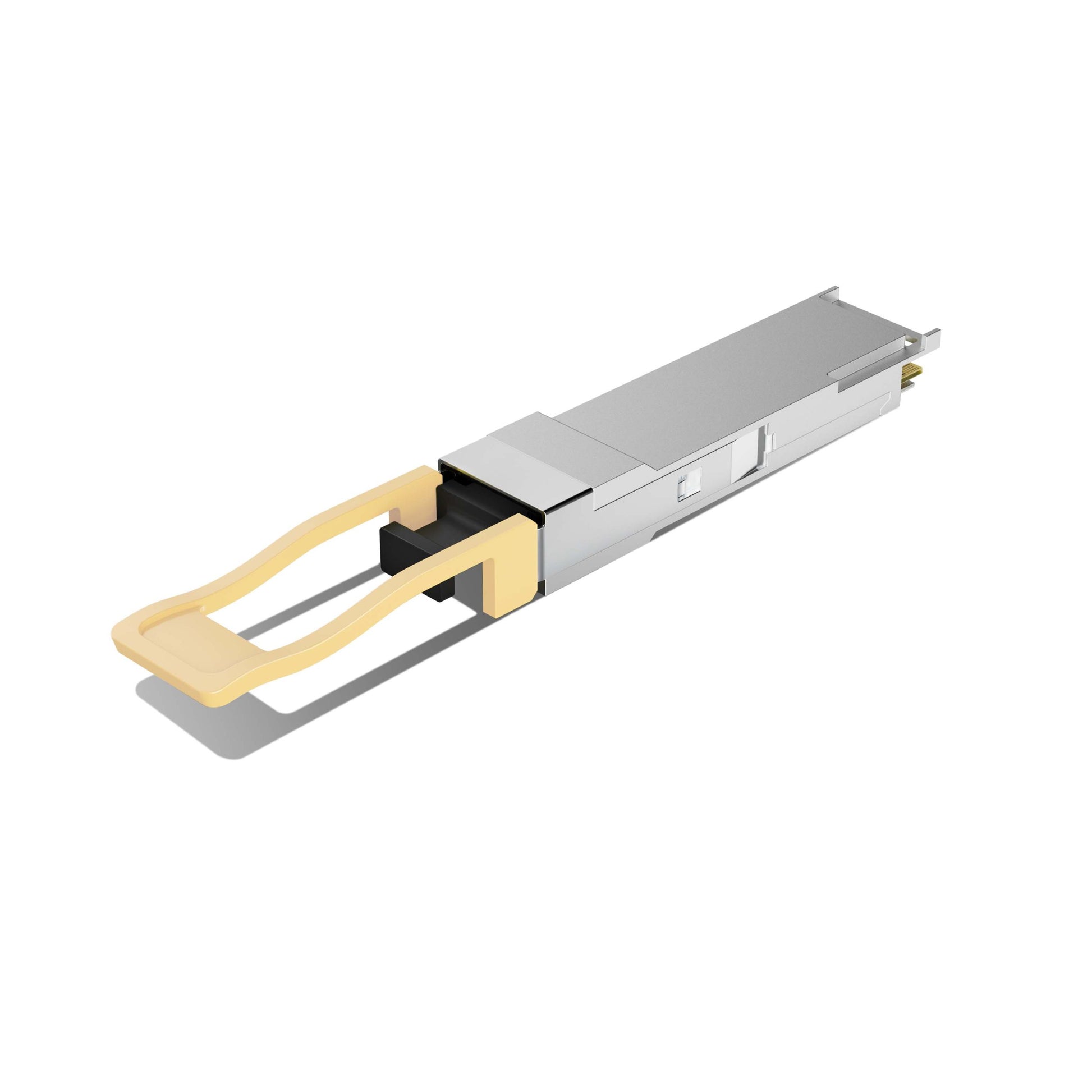

QSFP+ 40G SR4 850nm 400M Transceiver

QSFP-40G-CSR4 are designed for use in 40 Gigabit per second links over multimode fiber. They are compliant with the QSFP+ MSA and IEEE 802.3ba 40GBASE-SR4. Module-level digital diagnostic functions are available via an I²C interface, as specified by the QSFP+ MSA. The optical transceiver is compliant per the RoHS Directive 2011/65/EU.

Features

• Reliable VCSEL array technology
• Maximum link length of 300m on OM3
• Hot-pluggable QSFP+ footprint
• Multimode Fiber(MMF) and 400m ON OM4 MMF
• Single 1×12 MPO receptacle
• Maximum power dissipation<1W
• Four-channel full-duplex transceiver module
• RoHS-6 compliant and lead-free
• Support Digital Diagnostic Monitor interface
• Un retimed XLPPI electrical interface
• Commercial operating case temperature range: 0℃ to 70℃
