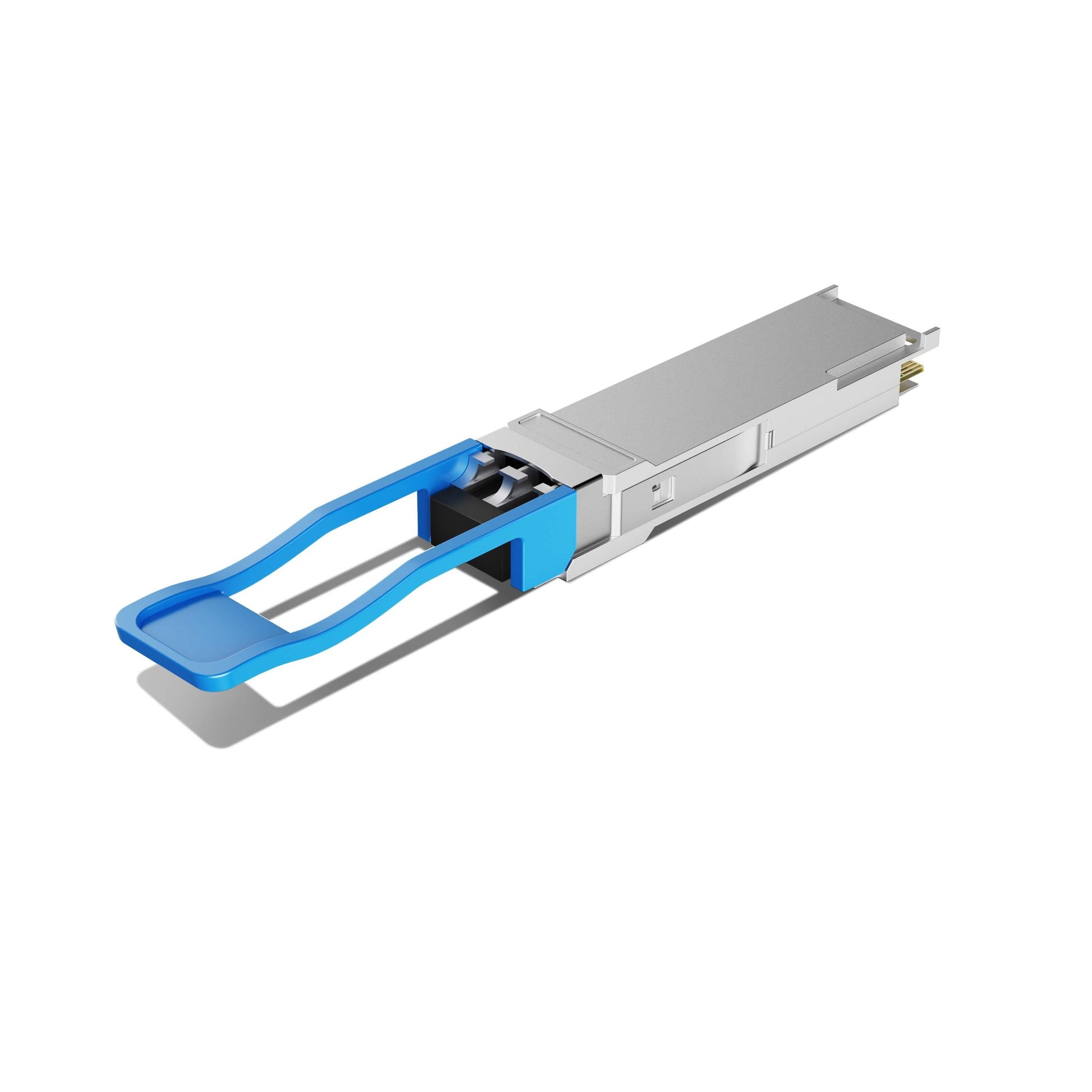

QSFP+ 40G LR4 10KM Transceiver

QSFP-40G-LR4 transceiver modules are designed for use in 40 Gigabit Ethernet links over single-mode fiber. They are compliant with the QSFP+ MSA and IEEE 802.3ba 40GBASE-LR4.Module-level digital diagnostic functions are available via an I2C interface, as specified by the QSFP+ MSA. The optical transceiver is compliant per the RoHS Directive 2011/65/EU.

Features

• Supports 41.2 Gb/s aggregate bit rates
• Uncooled 4x10Gb/s transmitter
• Maximum link length of 10km on Single Mode Fiber (SMF)
• Hot-pluggable QSFP+ footprint
• Duplex LC receptacles
• Power dissipation<3.5W
• RoHS-6 compliant and lead-free
• Single 3.3V power supply
• Support Digital Diagnostic Monitor interface
• Case operating temperature
• Commercial: 0°C to +70°C
